Arriving Soon: Mitsubishi Lancer Evolution VIII MR GSR — Kondo Engineering Built 550PS Full Tune

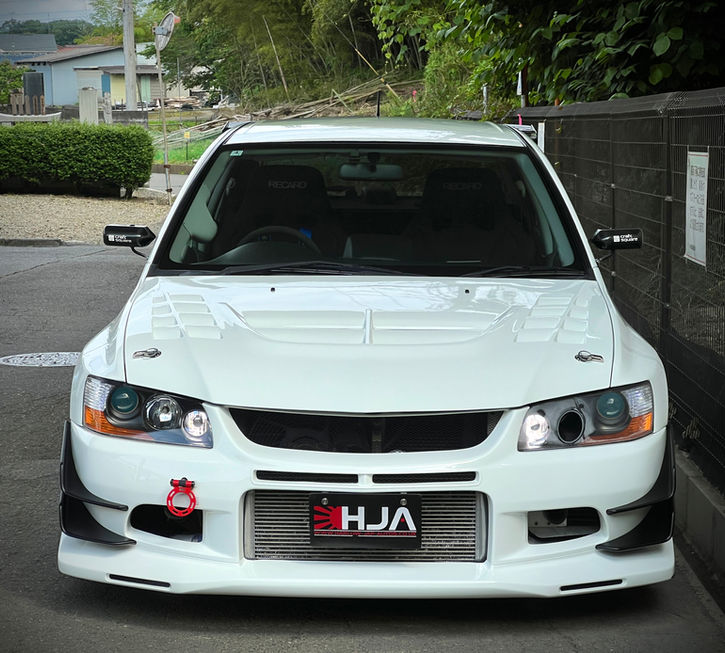

• 2004 Mitsubishi Lancer Evolution VIII MR GSR

• 84,264 km / approx. 52,359 miles

• Auction grade 4 / no accident history

• Kondo Engineering built and tuned

• 500PS+ specification

• 5-speed manual

• W83 white

• Stock code: HJA801

[HJA Presents: A Kondo Engineering Built Evo VIII MR GSR]

HJA are excited to offer this exceptional Mitsubishi Lancer Evolution VIII MR GSR, a Grade 4 example built to a very serious specification by Kondo Engineering in Japan.

Although the specification is extremely serious, the car has been built with real road use in mind. Our team in Japan have driven it and came away very impressed, reporting that it feels tight, responsive and drives like a new car. It is a proper full street car first and foremost, with more than enough engine, chassis, braking and aero specification for occasional track use if the next owner wishes.

[Built By Kondo Engineering]

Kondo Engineering are a respected Japanese tuning shop known for engine builds, ECU setting, original parts and high-level performance car preparation. Led by Shuichi Kondo, formerly of JUN Auto Mechanic, the company has a strong background in serious demo-car and high-power engine development.

[A Serious Kondo Engineering Build]

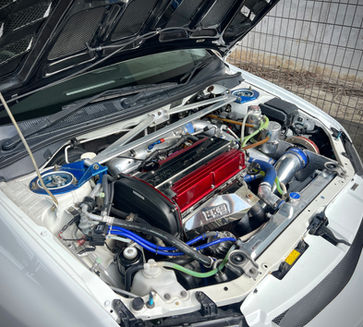

The engine is a Kondo Engineering built 2.2L 4G63 using a TOMEI stroker kit, forged pistons, forged H-section rods, forged full-counter crankshaft, JUN 272 cams, JUN valve springs, JUN titanium retainers, TODA cam pulleys, TODA timing belt and a NAPREC High Response cylinder head package.

The turbo setup consists of an HKS GT3037, HKS exhaust manifold, HKS external wastegate. Supporting parts include SARD 850cc injectors, SARD collector tank, SARD 265L fuel pump, HKS intercooler, HKS oil cooler, APEXi aluminium radiator and an Unlimited Works 90mm full titanium exhaust.

[Strengthened 5-Speed, Brembo F50 & Voltex Aero]

The drivetrain has been properly upgraded with an Evo VI 5-speed gearbox conversion, WPC-treated gears, WPC-treated main shaft and synchronisers, ATS carbon twin-plate clutch, ATS lightweight flywheel, 4.111 final gear and Cusco Type RS front LSD.

Handling is taken care of by Kondo Engineering coilovers with rear separate tanks, Bestex springs, Kansai Service geometry parts, Cusco stabilisers and additional chassis bracing.

Braking is handled by Brembo F50 front calipers with RDD 343mm front discs, genuine Brembo rear calipers, RDD 320mm rear discs, braided lines and Winmax AC3 pads.

The exterior features a full Voltex aero package, including front bumper, rear overfenders, circuit front under-wing, double canards, side steps, Type V carbon GT wing and rear under-tray. It also has Voltex front wide fenders, Evo IX rear bumper, Varis carbon bonnet, CraftSquare mirrors and a genuine optional vortex generator.

[Interior & Current Presentation]

The car presents with twin matching Recaro full bucket seats, blue Willans harness, rear seat delete with carpeted rear section, MOMO suede steering wheel, quick-release boss, aluminium shift knob, KARO floor mats, Defi-Link meters, HKS Circuit Attack Counter, HKS Knock Amplifier and visible SARD fuel system behind the front seats.

A rare chance to secure a Kondo Engineering built Evo VIII MR GSR with a huge, properly matched specification and real street usability.

[ENGINE]

Kondo Engineering built engine

Recorded as approx. 6,000 km since engine overhaul

TOMEI 2.2L stroker kit

TOMEI forged pistons

TOMEI piston pins

WPC-treated piston rings

TOMEI H-section forged connecting rods

TOMEI forged full-counter crankshaft

JUN IN/EX 272 camshafts, 10.8 lift

JUN reinforced valve springs

JUN titanium valve retainers

JUN solid pivots

TODA slide cam pulleys

TODA reinforced timing belt

NAPREC High Response Kit

IN/EX big valves

Valve grinding and lapping

Seat cutting and bore enlargement

Port enlargement and grinding

Combustion chamber processing

Cast valve guide replacement

Cylinder head surface grinding

ISC valve bypass processing

HKS metal head gasket

TOMEI oil pan baffle plate

TRUST Racing blow-off valve Type R

OKADA PROJECTS Plasma Direct ignition coils

Cusco engine mounts

SARD oil catch tank

Ralliart oil filler cap

TOMEI metal engine ornament plate

Rebuilt engine starter

[TURBO]

HKS GT3037 turbocharger

HKS exhaust manifold

HKS external wastegate

HKS Racing SQV

[FUEL / COOLING / EXHAUST]

HKS fuel delivery line

HKS fuel regulator

SARD 850cc injectors x4

SARD fuel collector tank

SARD 265L fuel pump

HKS front-mount intercooler

One-off intercooler piping

HKS oil cooler

APEXi aluminium 3-layer radiator

SARD air reservoir tank

SARD radiator cap

HKS Super Power Flow Reloaded

HKS Racing Suction

NAPREC 100mm throttle body

ALTRACK SPL intake manifold

One-off 80mm front pipe

Unlimited Works 90mm full titanium exhaust

[ECU / ELECTRONICS]

HKS F-CON V Pro Gold Ver. 3.24

HKS EVC6-iR 2.4 boost controller

HKS Knock Amplifier

HKS Circuit Attack Counter

Billion VFC fan controller

Defi-Link meter system

Defi boost gauge

Defi water temperature gauge

Defi oil temperature gauge

Defi oil pressure gauge

Pivot shift light

[DRIVETRAIN / SUSPENSION]

Evo VI 5-speed gearbox conversion

Recorded as approx. 500 km since gearbox overhaul in the Japanese specification

New 2nd, 3rd, 4th and 5th gears

WPC-treated 1st to 5th gears

WPC-treated main shaft

WPC-treated synchronisers

ATS carbon twin-plate clutch

ATS lightweight flywheel

4.111 final gear

Cusco Type RS front LSD

Cusco transmission mount

KBC shift lever base block

KBC shift wire rigid collar

Urethane shift linkage bushes

Kondo Engineering coilovers, rear separate-tank type

Bestex springs, 14kg front / 12kg rear

Kansai Service long tie-rod ends

Kansai Service roll centre adjusters

Cusco front stabiliser

Cusco rear adjustable stabiliser

Cusco front and rear tower bars

Kansai Service lower arm bar

J-Speed Super Muscle Bar

Mitsubishi genuine optional rear end crossbar

[BRAKES / WHEELS]

Enkei PF01 wheels

Brembo F50 front brake calipers

RDD 343mm front brake discs

Genuine Brembo rear brake calipers

RDD 320mm rear brake discs

Stainless steel braided brake lines

Winmax custom front AC3 brake pads

Winmax rear AC3 brake pads

[EXTERIOR]

Voltex front bumper

Voltex front under-wing, circuit version

Voltex double canards

Voltex side steps

Voltex Type V carbon GT wing

Voltex rear under-tray / rear diffuser

Voltex rear wide fenders / rear over-fenders

Voltex  vented front wide fenders

Voltex Carbon bonnet

Evo IX genuine rear bumper

CraftSquare TCA-N1 touring mirrors

Genuine optional vortex generator

Near-side headlight modified with duct (OEM available)

[INTERIOR]

Twin Recaro full bucket seats

Blue Willans harnesses

Rear seat delete with carpeted rear section

MOMO suede steering wheel

Quick-release steering boss

Extended steering boss spacer

Aluminium shift knob

Carbon-look handbrake handle

KARO floor mats

Defi triple dash-mounted gauge pod

Defi additional driver-side/A-pillar gauge

Defi-Link controller

HKS EVC boost controller

HKS Circuit Attack Counter

HKS Knock Amplifier / knock monitoring unit

Aftermarket centre console display / control unit

Centre console delete panel

SARD fuel collector tank mounted behind the front seats

SARD fuel system visible in boot/rear cabin area

Rear strut brace / rear chassis bracing
